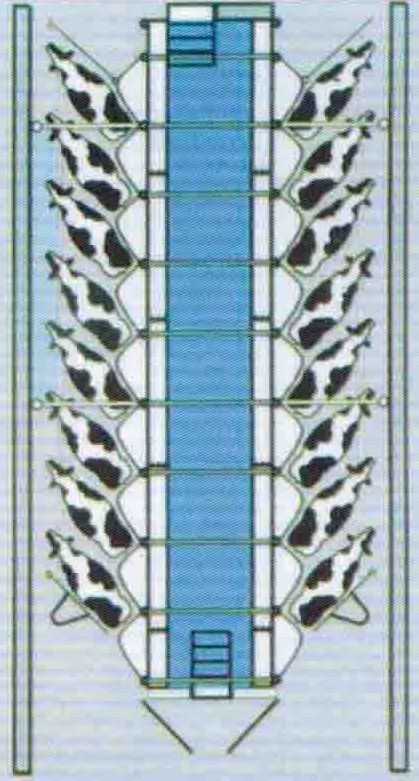

Fishbone-Type Measuring Bottle

The Fishbone-Type frame is consisted of each separated units with flexible units. Suspended structure: There is a stand column, fixed frame and adjustable arch at each end of the cow place. Support frame: Every two cow places has a carriage, fixing is easy and convenient, choosing different automation degree of guardrail, groove edge is made of stainless steel or galvanized plates, fixed by bolts or cement. Three choices for door control: manual control, vacuum drive and pneumatically drive, which satisfy the different requests. You can choose to install electronic measurement device and quantitative feeding device and Pasture management system Suitable size of milking parlor: 1x4-2x40 Central distance of cow position：1150mm Bottom width of the operation sap:2300mm Top width of the operation sap: 2000mm Depth of operation sap: 800mm Length of operation sap：cow position x1150+2100mm Width of cow standing platform: 1200(±50)mm
