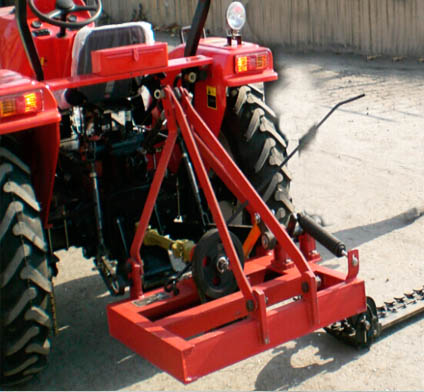

9GB-1.4/1.6/1.8//2.1 Rear-fixed mounted reciprocating-type Mower matched with four-wheel tractor range from 12~35 HP. The machine uses biased crank connected bar structure to drive blades to work. It is suitable to be used to reap natural forage grass and plant herbage, alfalfa, reed, grass feed etc. in level grass land for agricultural, forest and pasturing area, and in different condition grass land in the sloping field and hills area. It uses the tractor’s power output shaft to promote the mower's movement of blade, used the three-points suspension structure to make the machine rise and fall, operate the power output structure (Operate the Clutch of tractor) to realize the moving and stopping of blades, lifting mechanism is divided into two models of cylinder and lifting frame.

Model	Working width(mm)	Stubble height(mm)	Weight (kg)	Matched power(HP)
9GB-F1.4	1400	60-80	160	35-50
9GB-F1.6	1600	60-80	170	35-50
9GB-F1.8	1800	60-80	180	35-50
9GB-F2.1	2100	60-80	190	35-50



9GB-F
