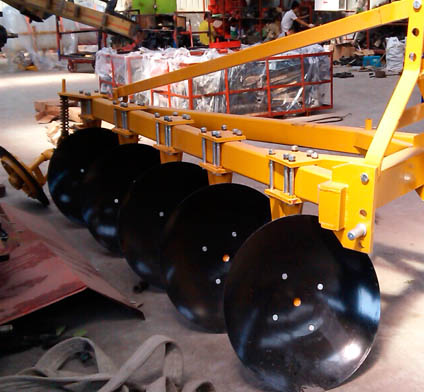

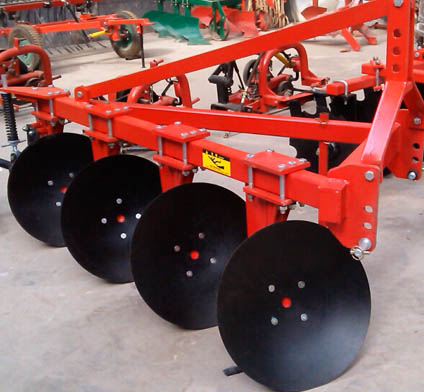

Disc plough is mounted on tractor machine.it is upgraded from furrow plow.The disc is turning when working,have good crumbling soil,turn over and stubble ability.it able to cut rootstock, broke brick.it is suited to land reclamation.and it struction is easy,set up is easy also,working good, broadly by the farmer.disc plough has 1LYQ series,1LY series,1LYX series,1LY(sx) series. According to different soil and tractor,matching different models.
|
Model
|
Working width(mm)
|
Working epth(mm)
|
Q'ty of share
|
Dia of disc(mm)
|
Weight (kg)
|
Matched power(HP)
|
|
1LYQ(T)-220
|
400
|
180-200
|
2
|
510*5
|
150
|
18
|
|
1LYQ(T)-320
|
600
|
3
|
510*5
|
200
|
25-30
|
|
1LYQ(T)-420
|
800
|
4
|
510*5
|
300
|
35-40
|
|
1LYQ(T)-325
|
750
|
200-250
|
3
|
660*6
|
420
|
50
|
|
1LYQ(T)-425
|
1000
|
4
|
660*6
|
480
|
80-100
|
|
1LYQ(T)-525
|
1250
|
5
|
660*6
|
530
|
100-120
|
|
1LYQ(T)-625
|
1500
|
6
|
660*6
|
570
|
120-160
|
