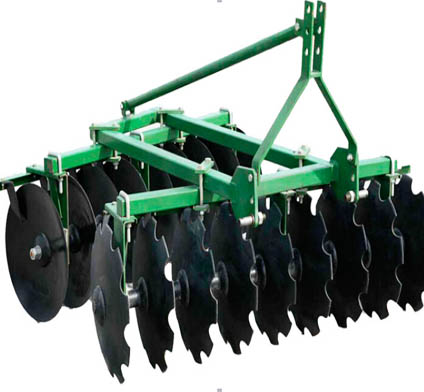

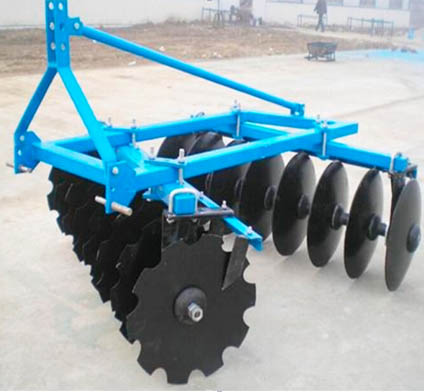

The 1BJX series mounted mid-size disc harrow is mainly applicable for breaking up the clods of farmland(light and medium soil) after furrow,loosening soil and mixing soil and fertilizer before sewing.it has the fetures of simple structure,strong ability and ground flat after working and it can meet the requirements of intensive caltivations.
|
Model
|
Working width(mm)
|
Working depth(mm)
|
Q'ty of disc
|
Dia of disc(mm)
|
Weight (kg)
|
Matched power(HP)
|
|
1BJX-1.8
|
1800
|
140-160
|
16
|
560*4
|
390
|
45
|
|
1BJX-2.0
|
2000
|
18
|
560*4
|
434
|
50
|
|
1BJX-2.2
|
2200
|
20
|
560*4
|
463
|
55-65
|
|
1BJX-2.4
|
2400
|
22
|
560*4
|
604
|
65-75
|
|
1BJX-2.5
|
2500
|
24
|
560*4
|
760
|
80
|
